Product Detail

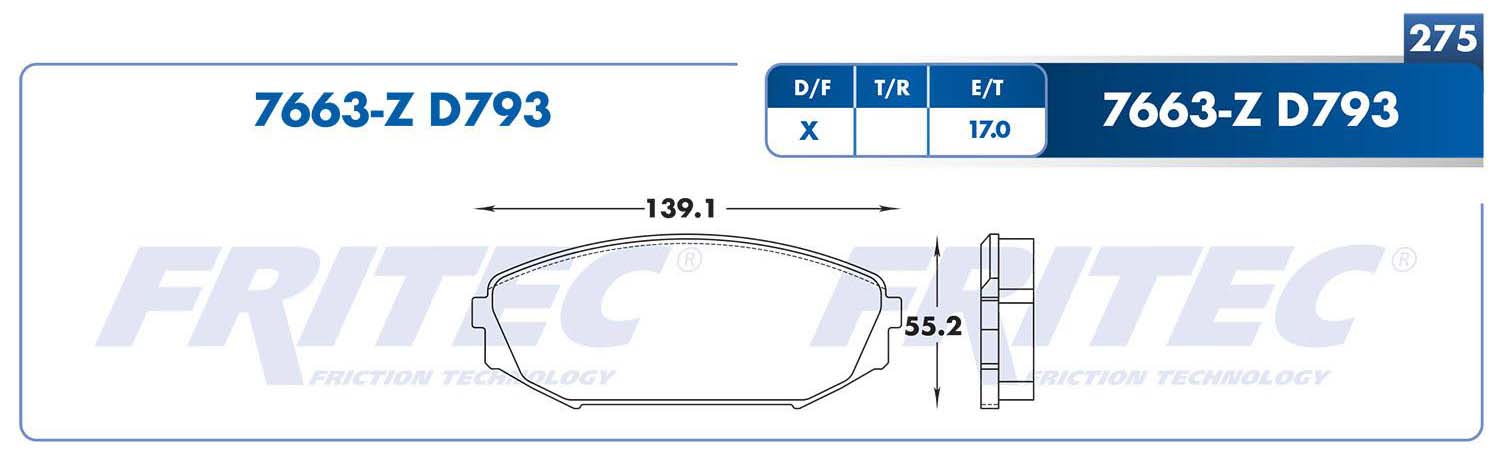

Disc brake pads Fritec, Ceramic Specific, Front
No. Parte: #SPC-7663-ZDisc brake pad manufactured with friction materials Ceramics, comfortable and safe
For more information see the specifications, video and applications sections
SKU: #SPC-7663-Z
Brake Pads
| Description | Value |
|---|---|
| Pad Assembly Thickness, Inner Overall(mm) | 17 |
| Mounting Hardware Included | No |
| Pad Assembly Thickness, Outer Overall(mm) | 17 |
| FMSI Number | 7663-D793 |
| Friction Material Composition | Ceramic LowMet |
| Pad Shims Included | Yes |
| Pad Wear Sensor Included | No |
| Grade Type | Performance |
| Friction Material Bonding Type | Bonded |
| Inner Plate Length(mm) | 139.1 |
| Inner Plate Width(mm) | 55.2 |
| Outer Plate Length(mm) | 139.1 |
| Outer plate Width(mm) | 55.2 |
| Inner Plate Length(in) | 5.48 |
| Inner Plate Width(in) | 2.17 |
| Outer Plate Length(in) | 5.47 |
| Outer plate Width(in) | 2.17 |
| Pad Assembly Thickness, Inner Overall(in) | 0.66 |
| Pad Assembly Thickness, Outer Overall(in) | 0.66 |
| Position | Front |
| Note | Ceramic Friction Material |
Also Fits
| Year | BRAND | Model | Submodel | Engine (L) |
|---|---|---|---|---|
| 1999 | Honda | Odyssey | Cargo | 3.5 V 3474 6 J35A1 SOHC 24 |
| 1999 | Honda | Odyssey | EX | 3.5 V 3474 6 J35A1 SOHC 24 |
| 1999 | Honda | Odyssey | LX | 3.5 V 3474 6 J35A1 SOHC 24 |
| 2000 | Honda | Odyssey | Cargo | 3.5 V 3474 6 J35A1 SOHC 24 |
| 2000 | Honda | Odyssey | EX | 3.5 V 3471 6 - SOHC 24 |
| 2000 | Honda | Odyssey | EX | 3.5 V 3474 6 J35A1 SOHC 24 |
| 2000 | Honda | Odyssey | LX | 3.5 V 3474 6 J35A1 SOHC 24 |
| 2001 | Acura | MDX | Base | 3.5 V 3471 6 J35A3 SOHC 24 |
| 2001 | Acura | MDX | Touring | 3.5 V 3471 6 J35A3 SOHC 24 |
| 2001 | Honda | Odyssey | Cargo | 3.5 V 3474 6 J35A1 SOHC 24 |
| 2001 | Honda | Odyssey | EX | 3.5 V 3474 6 J35A1 SOHC 24 |
| 2001 | Honda | Odyssey | LX | 3.5 V 3474 6 J35A1 SOHC 24 |
| 2002 | Acura | MDX | Base | 3.5 V 3471 6 J35A3 SOHC 24 |
| 2002 | Acura | MDX | Touring | 3.5 V 3471 6 J35A3 SOHC 24 |
| 2002 | Honda | Odyssey | Cargo | 3.5 V 3474 6 J35A4 SOHC 24 |
| 2002 | Honda | Odyssey | EX | 3.5 V 3474 6 J35A4 SOHC 24 |
| 2002 | Honda | Odyssey | EX-L | 3.5 V 3474 6 J35A4 SOHC 24 |
| 2002 | Honda | Odyssey | LX | 3.5 V 3474 6 J35A4 SOHC 24 |
| 2003 | Acura | MDX | Base | 3.5 V 3471 6 J35A5 SOHC 24 |
| 2003 | Acura | MDX | Touring | 3.5 V 3471 6 J35A5 SOHC 24 |
| 2003 | Honda | Odyssey | EX | 3.5 V 3474 6 J35A4 SOHC 24 |
| 2003 | Honda | Odyssey | EX-L | 3.5 V 3474 6 J35A4 SOHC 24 |
| 2003 | Honda | Odyssey | LX | 3.5 V 3474 6 J35A4 SOHC 24 |
| 2004 | Acura | MDX | Base | 3.5 V 3471 6 J35A5 SOHC 24 |
| 2004 | Acura | MDX | Touring | 3.5 V 3471 6 J35A5 SOHC 24 |
| 2004 | Honda | Odyssey | EX | 3.5 V 3474 6 J35A4 SOHC 24 |
| 2004 | Honda | Odyssey | EX-L | 3.5 V 3474 6 J35A4 SOHC 24 |
| 2004 | Honda | Odyssey | LX | 3.5 V 3474 6 J35A4 SOHC 24 |
| 2005 | Acura | MDX | Base | 3.5 V 3471 6 J35A5 SOHC 24 |
| 2005 | Acura | MDX | Touring | 3.5 V 3471 6 J35A5 SOHC 24 |
| 2006 | Acura | MDX | Base | 3.5 V 3471 6 J35A5 SOHC 24 |
| 2006 | Acura | MDX | Touring | 3.5 V 3471 6 J35A5 SOHC 24 |
