Product Detail

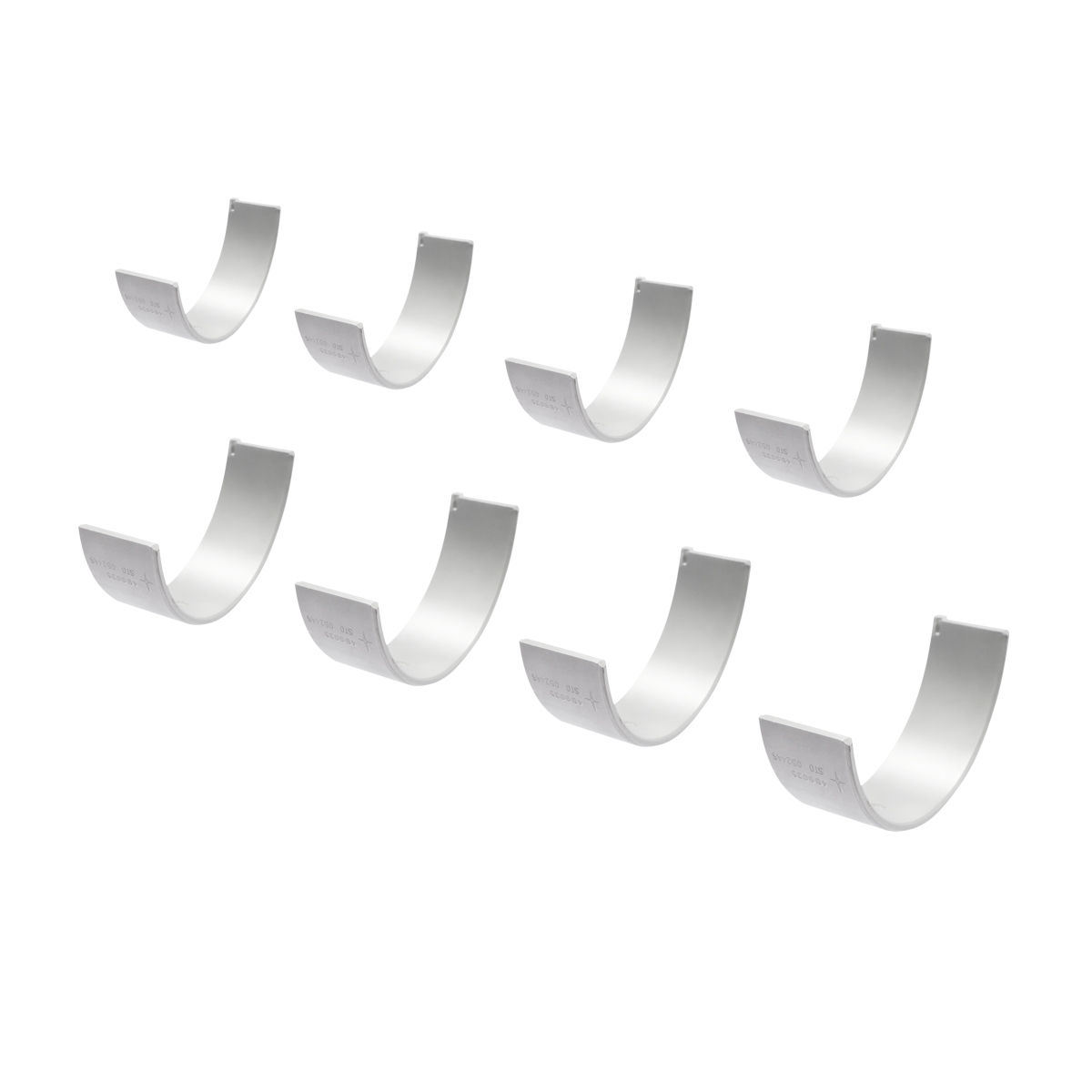

Connecting Rod Bearing Moresa brand
No. Parte: #4B9035 STDEngine connecting rod bearings with E.O. specifications and quality materials Content: 8 Pieces
Toyota L4 1.5L (1497cc)1NZ-FE (2005-11) Yaris.
SKU: #4B9035 STD
Connecting Rod Bearing
| Description | Value |
|---|---|
| Meets or Exceeds Original Equipment Manufacture Specifications | Yes |
| Width (mm) | 13.5 |
| GradeType | Regular |
| Position | N/A |
| Min. Standard Shaft Diameter (mm) | 39.989 |
| Min. Standard Shaft Diameter (in) | 1.5744 |
| Max. Thickness (mm) | 1.493 |
| Torque | ND |
| Maximum Clearance (mm) | 0.0381 |
| Maximum Clearance (in) | 0.0015 |
| Maximum Housing Inside Diameter (mm) | 43.014 |
| Maximum Housing Inside Diameter (in) | 1.6935 |
| Max. Standard Shaft Diameter (mm) | 39.999 |
| Max. Standard Shaft Diameter (in) | 1.574 |
| Min. Thickness (in) | 0.058 |
| Minimum Clearance (mm) | 0.012 |
| Minimum Clearance (in) | 0.0005 |
| Minimum Housing Inside Diameter (mm) | 42.999 |
| Minimum Housing Inside Diameter (in) | 1.6929 |
| Location | All |
| Width (in) | 0.5314 |
Also Fits
| Year | BRAND | Model | Submodel | Engine (L) |
|---|---|---|---|---|
| 2004 | Toyota | Echo | Base | 1.5 L 1497 4 1NZ-FE DOHC 16 |
| 2004 | Toyota | Prius | Base | 1.5 L 1497 4 1NZ-FXE DOHC 16 |
| 2004 | Toyota | Yaris | Base | 1.3 L 1299 4 - DOHC 16 |
| 2004 | Toyota | Yaris | SOL | 1.3 L 1299 4 - DOHC 16 |
| 2005 | Toyota | Echo | Base | 1.5 L 1497 4 1NZ-FE DOHC 16 |
| 2005 | Toyota | Prius | Base | 1.5 L 1497 4 1NZ-FXE DOHC 16 |
| 2005 | Toyota | Yaris | SOL | 1.3 L 1299 4 - DOHC 16 |
| 2006 | Toyota | Prius | Base | 1.5 L 1497 4 1NZ-FXE DOHC 16 |
| 2006 | Toyota | Yaris | CE | 1.5 L 1497 4 1NZ-FE DOHC 16 |
| 2006 | Toyota | Yaris | Core | 1.5 L 1497 4 1NZ-FE DOHC 16 |
| 2006 | Toyota | Yaris | LE | 1.5 L 1497 4 1NZ-FE DOHC 16 |
| 2006 | Toyota | Yaris | Premium | 1.5 L 1497 4 1NZ-FE DOHC 16 |
| 2006 | Toyota | Yaris | RS | 1.5 L 1497 4 1NZ-FE DOHC 16 |
| 2007 | Toyota | Prius | Base | 1.5 L 1497 4 1NZ-FXE DOHC 16 |
| 2007 | Toyota | Prius | Touring | 1.5 L 1497 4 1NZ-FXE DOHC 16 |
| 2007 | Toyota | Yaris | Base | 1.5 L 1497 4 1NZ-FE DOHC 16 |
| 2007 | Toyota | Yaris | CE | 1.5 L 1497 4 1NZ-FE DOHC 16 |
| 2007 | Toyota | Yaris | Core | 1.5 L 1497 4 1NZ-FE DOHC 16 |
| 2007 | Toyota | Yaris | LE | 1.5 L 1497 4 1NZ-FE DOHC 16 |
| 2007 | Toyota | Yaris | Premium | 1.5 L 1497 4 1NZ-FE DOHC 16 |
| 2007 | Toyota | Yaris | RS | 1.5 L 1497 4 1NZ-FE DOHC 16 |
| 2007 | Toyota | Yaris | S | 1.5 L 1497 4 1NZ-FE DOHC 16 |
| 2008 | Toyota | Prius | Base | 1.5 L 1497 4 1NZ-FXE DOHC 16 |
| 2008 | Toyota | Prius | Touring | 1.5 L 1497 4 1NZ-FXE DOHC 16 |
| 2008 | Toyota | Yaris | Base | 1.5 L 1497 4 1NZ-FE DOHC 16 |
| 2008 | Toyota | Yaris | CE | 1.5 L 1497 4 1NZ-FE DOHC 16 |
| 2008 | Toyota | Yaris | Core | 1.5 L 1497 4 1NZ-FE DOHC 16 |
| 2008 | Toyota | Yaris | LE | 1.5 L 1497 4 1NZ-FE DOHC 16 |
| 2008 | Toyota | Yaris | Premium | 1.5 L 1497 4 1NZ-FE DOHC 16 |
| 2008 | Toyota | Yaris | RS | 1.5 L 1497 4 1NZ-FE DOHC 16 |
| 2008 | Toyota | Yaris | S | 1.5 L 1497 4 1NZ-FE DOHC 16 |
| 2009 | Toyota | Prius | Base | 1.5 L 1497 4 1NZ-FXE DOHC 16 |
| 2009 | Toyota | Prius | Touring | 1.5 L 1497 4 1NZ-FXE DOHC 16 |
| 2009 | Toyota | Yaris | Base | 1.5 L 1497 4 1NZ-FE DOHC 16 |
| 2009 | Toyota | Yaris | CE | 1.5 L 1497 4 1NZ-FE DOHC 16 |
| 2009 | Toyota | Yaris | Core | 1.5 L 1497 4 1NZ-FE DOHC 16 |
| 2009 | Toyota | Yaris | Premium | 1.5 L 1497 4 1NZ-FE DOHC 16 |
| 2009 | Toyota | Yaris | RS | 1.5 L 1497 4 1NZ-FE DOHC 16 |
| 2009 | Toyota | Yaris | S | 1.5 L 1497 4 1NZ-FE DOHC 16 |
| 2010 | Toyota | Yaris | Base | 1.5 L 1497 4 1NZ-FE DOHC 16 |
| 2010 | Toyota | Yaris | CE | 1.5 L 1497 4 1NZ-FE DOHC 16 |
| 2010 | Toyota | Yaris | Core | 1.5 L 1497 4 1NZ-FE DOHC 16 |
| 2010 | Toyota | Yaris | Premium | 1.5 L 1497 4 1NZ-FE DOHC 16 |
| 2010 | Toyota | Yaris | RS | 1.5 L 1497 4 1NZ-FE DOHC 16 |
| 2011 | Toyota | Yaris | Base | 1.5 L 1497 4 1NZ-FE DOHC 16 |
| 2011 | Toyota | Yaris | CE | 1.5 L 1497 4 1NZ-FE DOHC 16 |
| 2011 | Toyota | Yaris | Core | 1.5 L 1497 4 1NZ-FE DOHC 16 |
| 2011 | Toyota | Yaris | Premium | 1.5 L 1497 4 1NZ-FE DOHC 16 |
| 2011 | Toyota | Yaris | RS | 1.5 L 1497 4 1NZ-FE DOHC 16 |
| 2012 | Toyota | Yaris | Base | 1.5 L 1497 4 1NZ-FE DOHC 16 |
| 2012 | Toyota | Yaris | CE | 1.5 L 1497 4 1NZ-FE DOHC 16 |
| 2012 | Toyota | Yaris | L | 1.5 L 1497 4 1NZ-FE DOHC 16 |
| 2012 | Toyota | Yaris | LE | 1.5 L 1497 4 1NZ-FE DOHC 16 |
| 2012 | Toyota | Yaris | Premium | 1.5 L 1497 4 1NZ-FE DOHC 16 |
| 2012 | Toyota | Yaris | SE | 1.5 L 1497 4 1NZ-FE DOHC 16 |
| 2013 | Toyota | Yaris | CE | 1.5 L 1497 4 1NZ-FE DOHC 16 |
| 2013 | Toyota | Yaris | L | 1.5 L 1497 4 1NZ-FE DOHC 16 |
| 2013 | Toyota | Yaris | LE | 1.5 L 1497 4 1NZ-FE DOHC 16 |
| 2013 | Toyota | Yaris | Premium | 1.5 L 1497 4 1NZ-FE DOHC 16 |
| 2013 | Toyota | Yaris | SE | 1.5 L 1497 4 1NZ-FE DOHC 16 |
| 2014 | Toyota | Yaris | CE | 1.5 L 1497 4 1NZ-FE DOHC 16 |
| 2014 | Toyota | Yaris | Core | 1.5 L 1497 4 1NZ-FE DOHC 16 |
| 2014 | Toyota | Yaris | L | 1.5 L 1497 4 1NZ-FE DOHC 16 |
| 2014 | Toyota | Yaris | LE | 1.5 L 1497 4 1NZ-FE DOHC 16 |
| 2014 | Toyota | Yaris | Premium | 1.5 L 1497 4 1NZ-FE DOHC 16 |
| 2014 | Toyota | Yaris | SE | 1.5 L 1497 4 1NZ-FE DOHC 16 |
| 2015 | Toyota | Yaris | CE | 1.5 L 1497 4 1NZ-FE DOHC 16 |
| 2015 | Toyota | Yaris | Core | 1.5 L 1497 4 1NZ-FE DOHC 16 |
| 2015 | Toyota | Yaris | L | 1.5 L 1497 4 1NZ-FE DOHC 16 |
| 2015 | Toyota | Yaris | LE | 1.5 L 1497 4 1NZ-FE DOHC 16 |
| 2015 | Toyota | Yaris | Premium | 1.5 L 1497 4 1NZ-FE DOHC 16 |
| 2015 | Toyota | Yaris | SE | 1.5 L 1497 4 1NZ-FE DOHC 16 |
