Product Detail

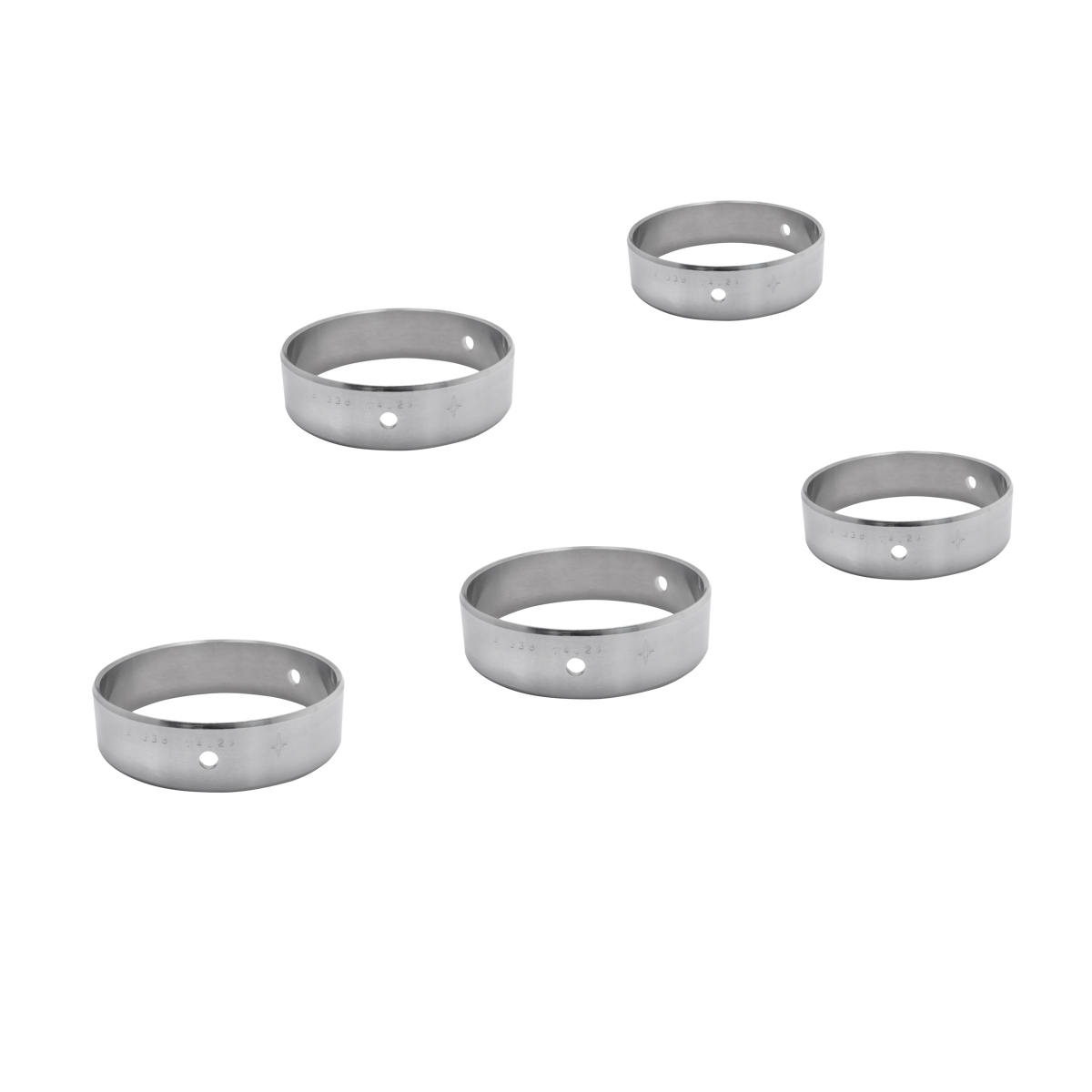

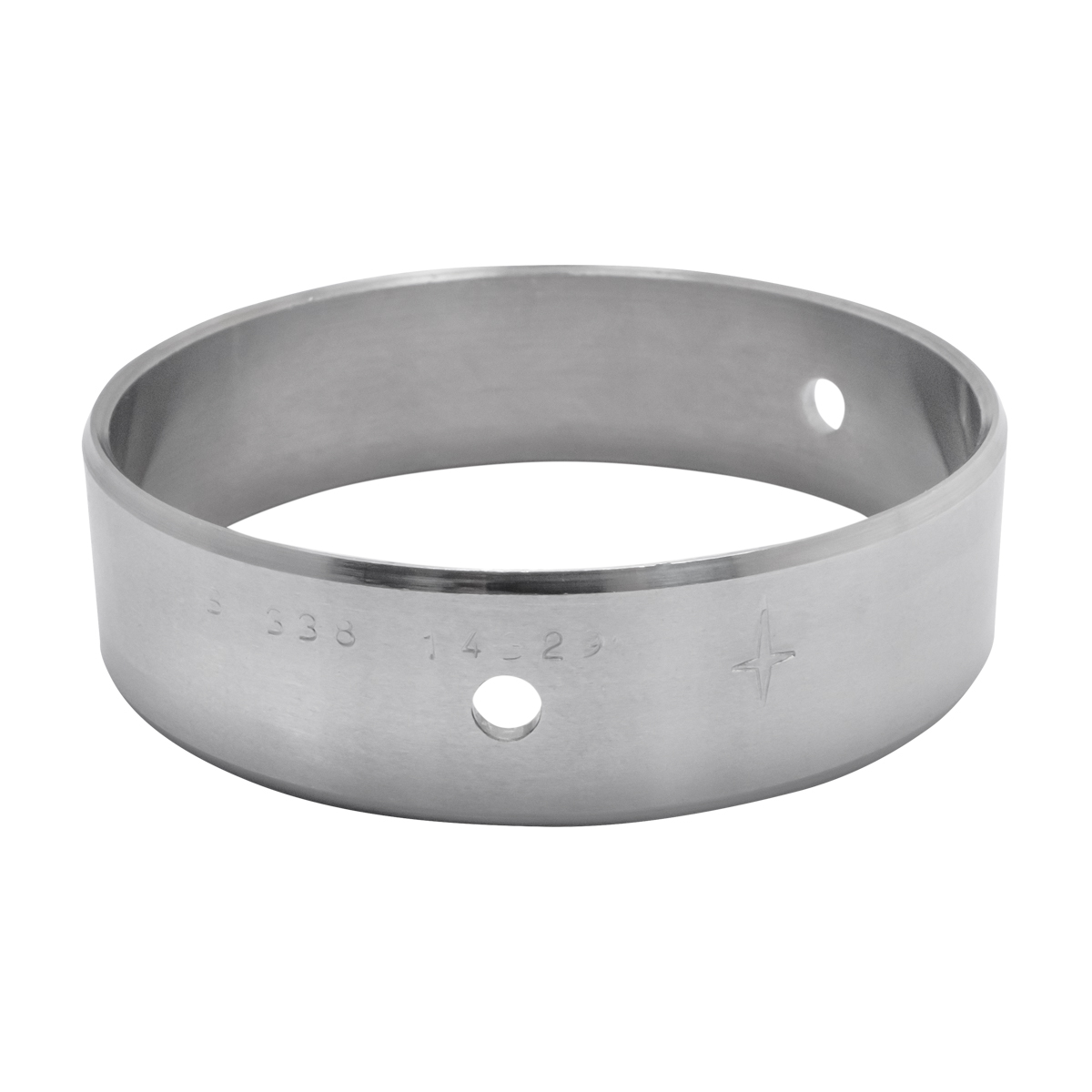

Camshaft Bearing Moresa brand
No. Parte: #MO1814M STDEngine camshaft bushing bearings with E.O. specifications and quality materials Content: 5 Pieces
GM V8 4.8L(294) Vortec LR4 , 5.3L(325) L59, 5.7L(346) LS1 , 5.7L(346) LS6, 6.0L(364) (1997-2004) Primer diseño Forja 12551358
SKU: #MO1814M STD
Camshaft Bearing
| Description | Value |
|---|---|
| OutsideDiameter | 2.411 |
| InsideDiameter | 6.411 |
| Width #1 (mm) | 16 |
| Wall Thickness #1 (mm) | 2 |
| Color | Gray |
| Material | Aluminium |
| Position | N/A |
| Min. Standard Shaft Diameter #1 (mm) | 54.991 |
| Max. Standard Shaft Diameter #1 (mm) | 55.042 |
| Wall Thickness #2 (mm) | 1.9 |
| Maximum Clearance #1 (mm) | 0.093 |
| Maximum Clearance #2 (mm) | 0.093 |
| Minimum Housing Inside Diameter #1 (mm) | 59.08 |
| Maximum Housing Inside Diameter #1 (mm) | 59.131 |
| Min. Standard Shaft Diameter #1 (in) | 2.165 |
| Max. Standard Shaft Diameter #1 (in) | 2.167 |
| Wall Thickness #2 (in) | 0.0748 |
| Maximum Clearance #1 (in) | 0.0037 |
| Maximum Clearance #2 (in) | 0.0037 |
| Minimum Housing Inside Diameter #1 (in) | 2.3259 |
| Maximum Housing Inside Diameter #1 (in) | 2.3279 |
| Wall Thickness #1 (in) | 0.0787 |
| Min. Standard Shaft Diameter #4 (in) | 0 |
| Maximum Clearance #3 (mm) | 0.093 |
| Minimum Housing Inside Diameter #2 (mm) | 58.829 |
| Max. Standard Shaft Diameter #4 (mm) | 0 |
| Maximum Clearance #3 (in) | 0.0037 |
| Minimum Housing Inside Diameter #2 (in) | 2.3161 |
| Max. Standard Shaft Diameter #4 (in) | 0 |
| Maximum Clearance #4 (mm) | 0 |
| Maximum Housing Inside Diameter #2 (mm) | 58.879 |
| Min. Standard Shaft Diameter #5 (mm) | 0 |
| Maximum Clearance #4 (in) | 0 |
| Maximum Housing Inside Diameter #2 (in) | 2.318 |
| Min. Standard Shaft Diameter #5 (in) | 0 |
| Maximum Clearance #5 (mm) | 0 |
| Minimum Housing Inside Diameter #3 (mm) | 58.58 |
| Max. Standard Shaft Diameter #5 (mm) | 0 |
| Maximum Clearance #5 (in) | 0 |
| Minimum Housing Inside Diameter #3 (in) | 2.3062 |
| Max. Standard Shaft Diameter #5 (in) | 0 |
| Location | 1-5 2-4 3 |
| Maximum Housing Inside Diameter #3 (mm) | 58.631 |
| Maximum Housing Inside Diameter #3 (in) | 2.3083 |
| Minimum Housing Inside Diameter #4 (mm) | 0 |
| Min. Standard Shaft Diameter #2 (mm) | 54.991 |
| Wall Thickness #3 (mm) | 1.8 |
| Minimum Housing Inside Diameter #4 (in) | 0 |
| Width #1 (in) | 0.6299 |
| Maximum Housing Inside Diameter #4 (mm) | 0 |
| Maximum Housing Inside Diameter #4 (in) | 0 |
| Minimum Housing Inside Diameter #5 (mm) | 0 |
| Minimum Housing Inside Diameter #5 (in) | 0 |
| Maximum Housing Inside Diameter #5 (mm) | 0 |
| Maximum Housing Inside Diameter #5 (in) | 0 |
| Min. Standard Shaft Diameter #2 (in) | 2.165 |
| Wall Thickness #3 (in) | 0.0708 |
| Width #2(mm) | 16 |
| Max. Standard Shaft Diameter #2 (mm) | 55.042 |
| Wall Thickness #4 (mm) | 0 |
| Width #2 (in) | 0.6299 |
| Max. Standard Shaft Diameter #2 (in) | 2.167 |
| Wall Thickness #4 (in) | 0 |
| Width #3 (mm) | 16 |
| Min. Standard Shaft Diameter #3 (mm) | 54.991 |
| Wall Thickness #5 (mm) | 0 |
| Width #3 (in) | 0.6299 |
| Min. Standard Shaft Diameter #3 (in) | 2.165 |
| Wall Thickness #5 (in) | 0 |
| Width #4 (mm) | 0 |
| Max. Standard Shaft Diameter #3 (mm) | 55.042 |
| Width #4 (in) | 0 |
| Max. Standard Shaft Diameter #3 (in) | 2.16700787401575 |
| Width #5 (mm) | 0 |
| Min. Standard Shaft Diameter #4 (mm) | 0 |
| Width #5 (in) | 0 |
| Note | Aluminium material. 2.411mm outside diameter 1 |
Also Fits
| Year | BRAND | Model | Submodel | Engine (L) |
|---|
