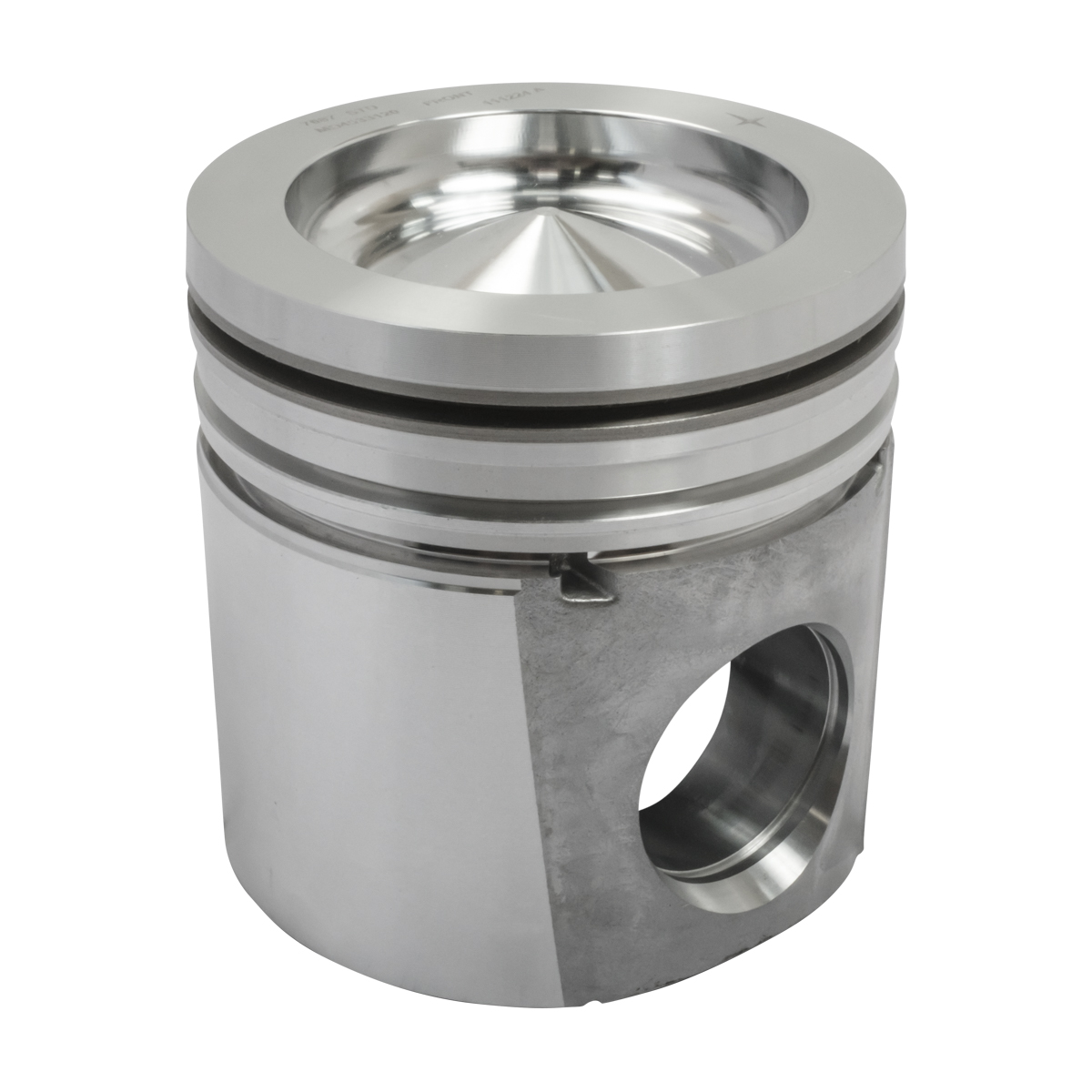

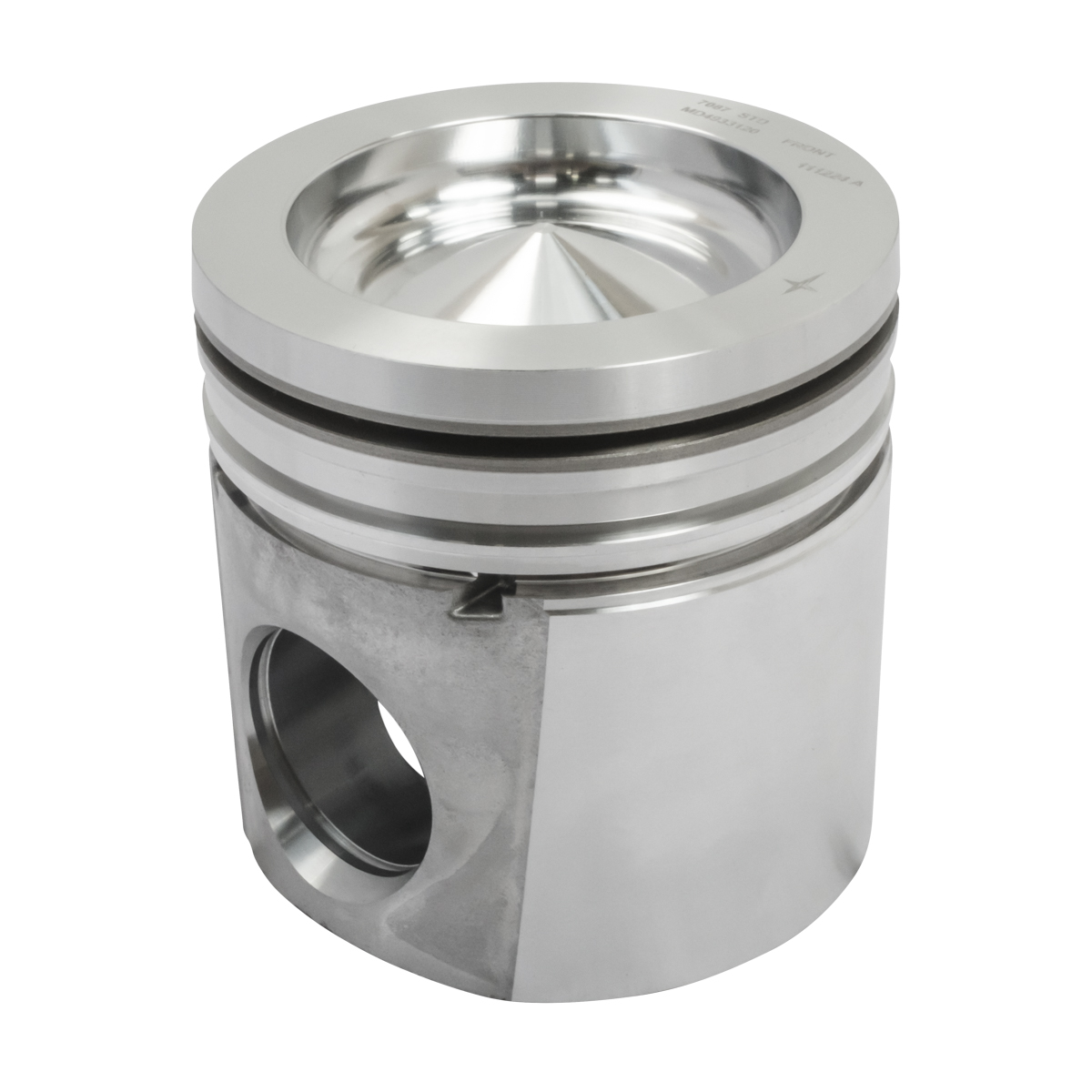

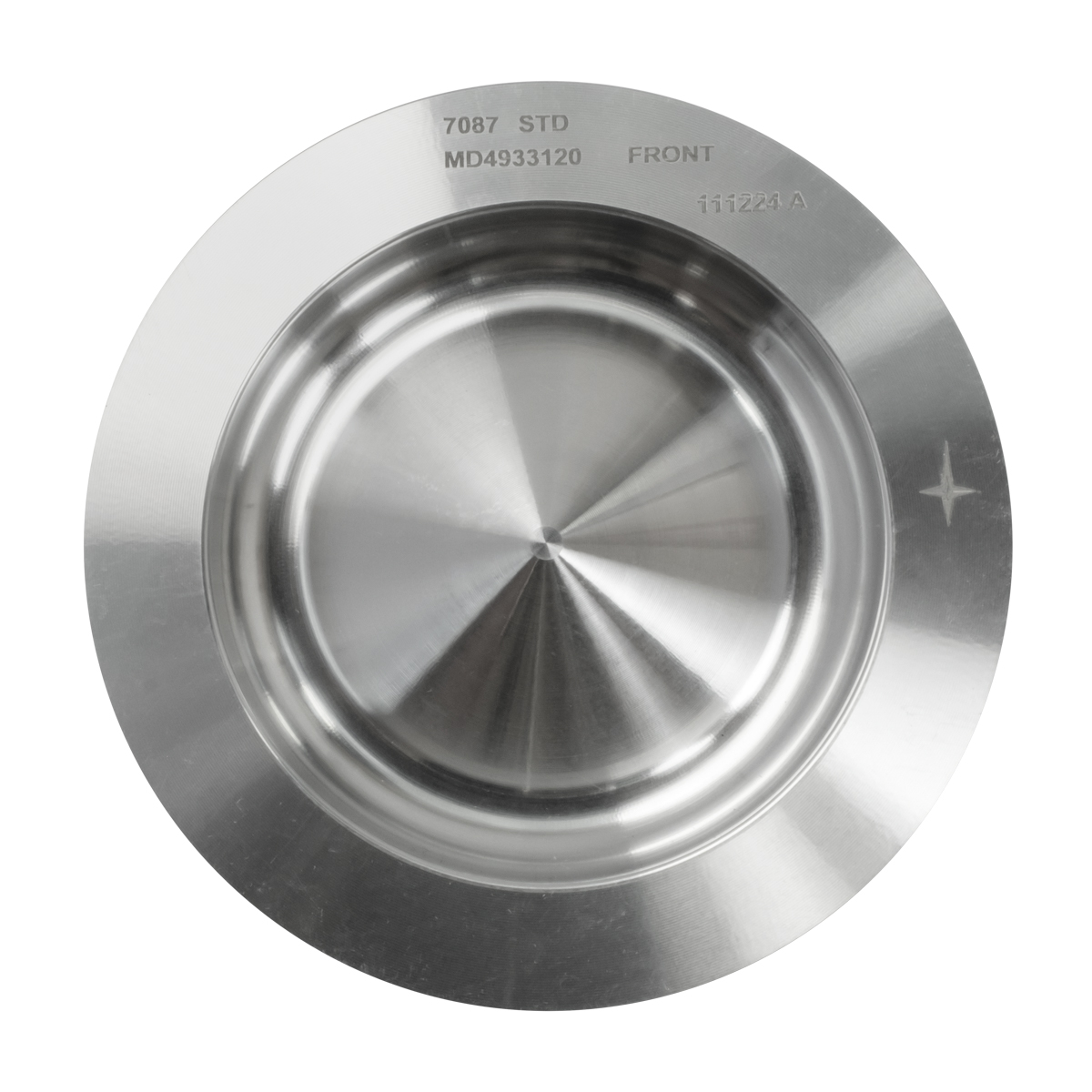

Moresa Diesel engine piston

No. Parte: #7087 STD
Moresa pistons are designed to withstand the high loads, pressures, and temperatures required by diesel engines, due to compliance with the highest quality standards required on the market.
Diesel Piston Cummins ISC / PACCAR PX-8 de 260HP hasta 315HP O.E. 4933120 / 3973265
SKU: #7087 STD
Share
Piston for engine
Description Value
Piston Outside Diameter (mm)113.89
Ring Materialstainless steel
Top Compression Ring Thickness (in)0.126
Second Compression Ring Thickness (in)0.106
Oil Ring Thickness (in)0.157
Piston Pin Outside Diameter (in)1.772
Piston Pin Length (in)3.598
Piston Pin MaterialSteel
Piston Head TypeNegative chamber
Piston MaterialAluminum alloy
Piston Outside Diameter (in)4.484
Meets or Exceeds Original Equipment Manufacture SpecificationsYes
Grade TypeStandar
Skirt TypeComplete
Piston Pmm Outside Diameter (mm)45
Top Compression Rmmg Thickness (mm)3.2
Second Compression Rmmg Thickness (mm)2.7
Cylinder Diameter (mm)114
Cylinder Diameter (in)4.488
Piston Pmm Length (mm)91.4
Oil Rmmg Thickness (mm)4
