Product Detail

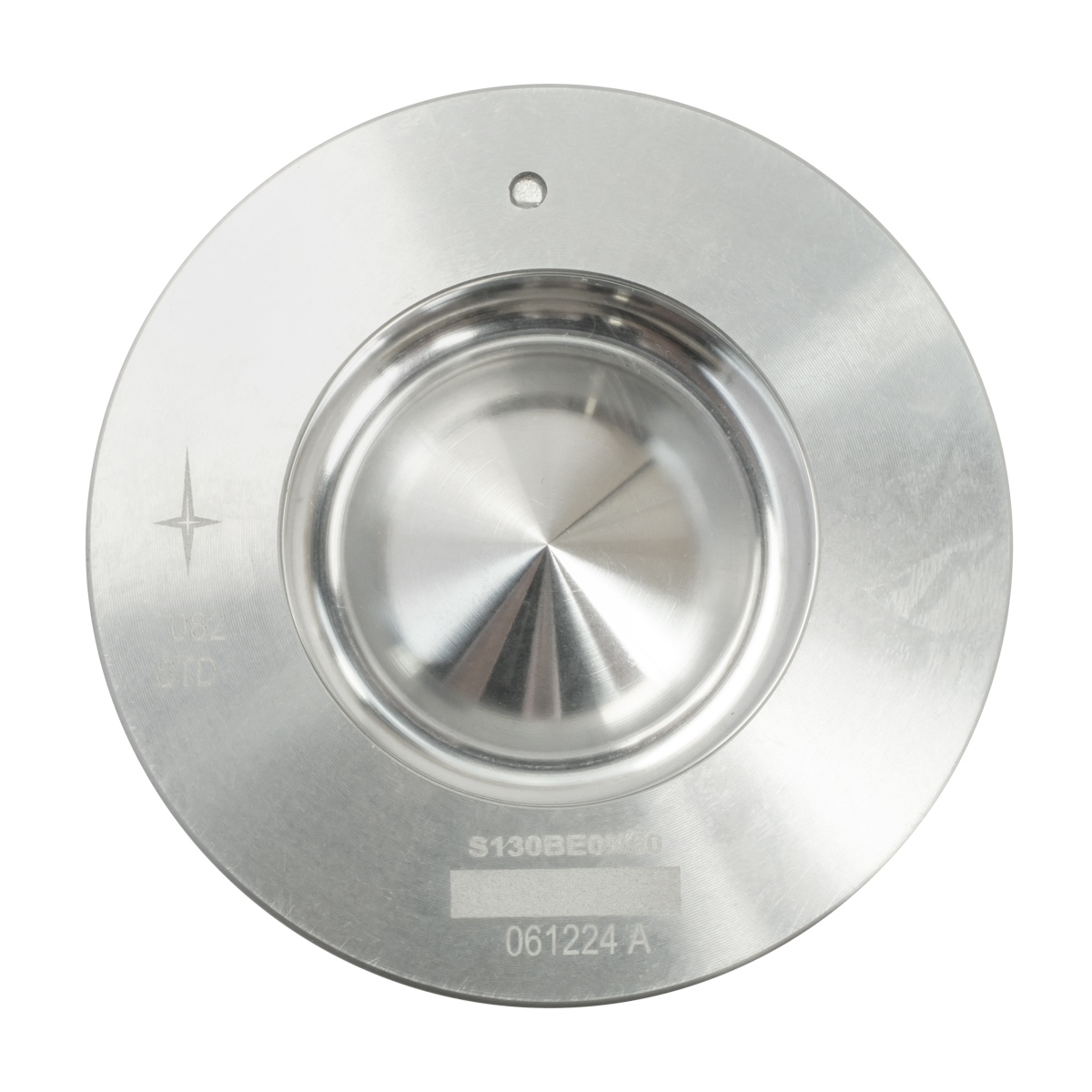

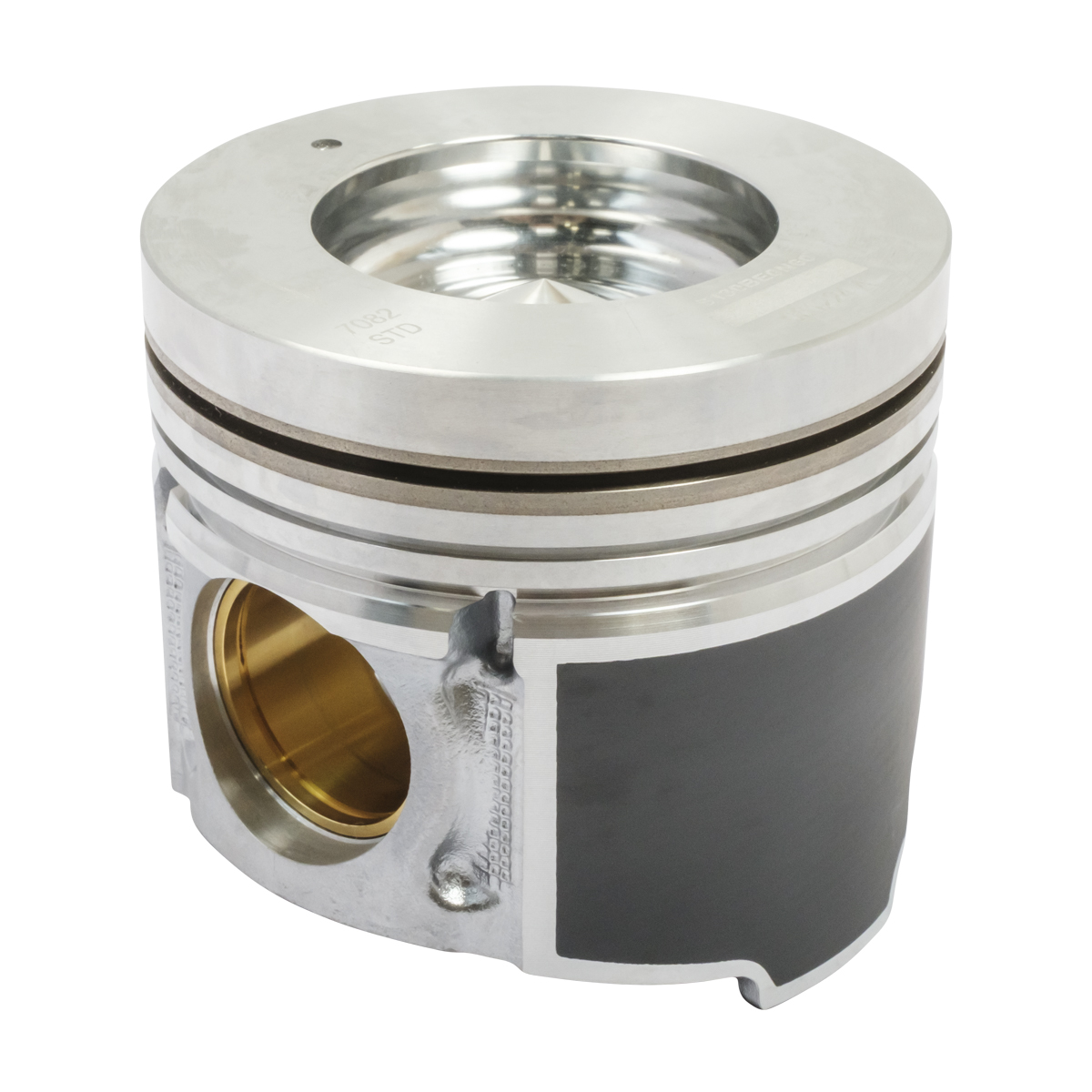

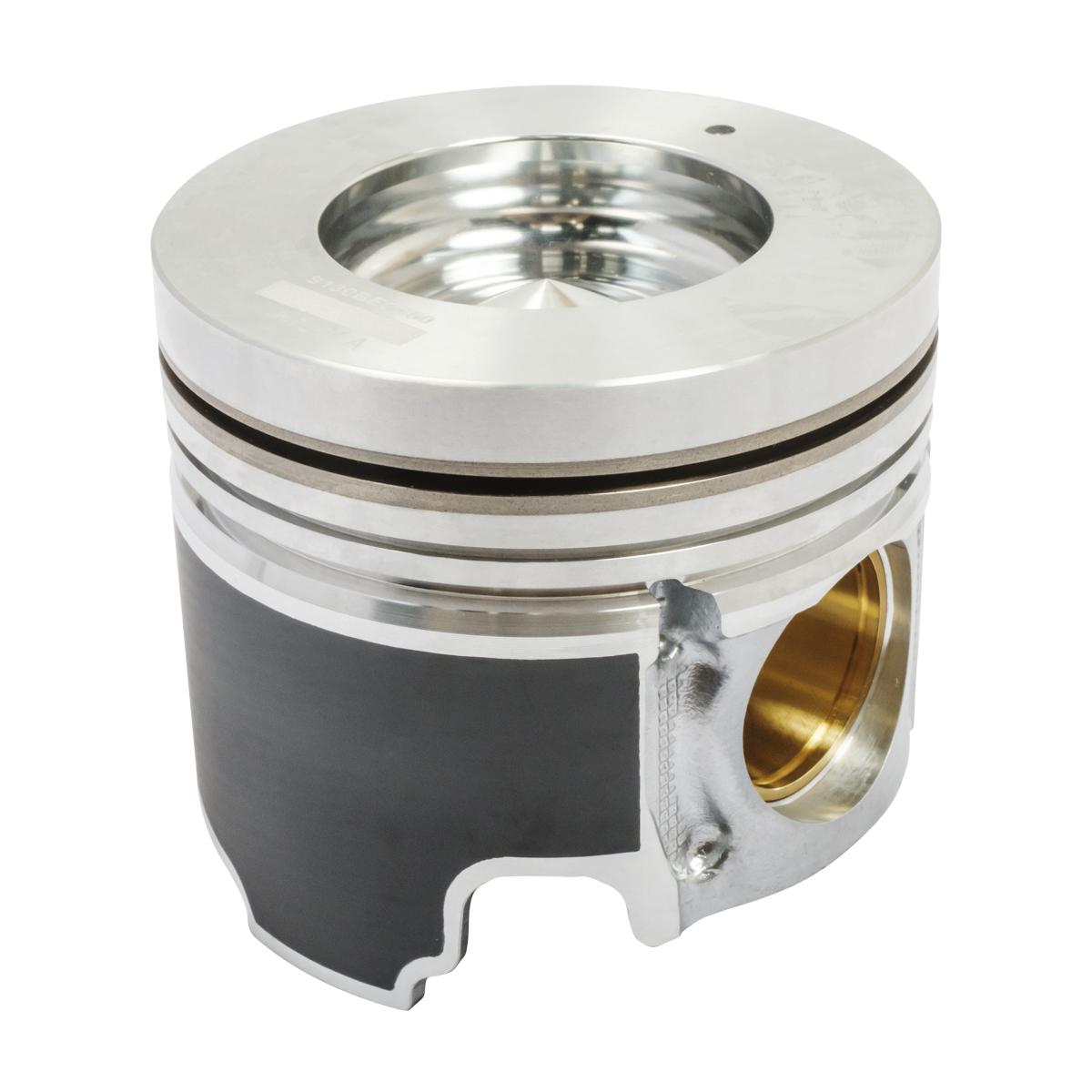

Moresa Diesel engine piston

No. Parte: #7082 STD
Moresa pistons are designed to withstand the high loads, pressures, and temperatures required by diesel engines, due to compliance with the highest quality standards required on the market.
Diesel Piston Hino 500 1524 6 Cil J08E -TE 7.6L. O.E. S130BE0N60
SKU: #7082 STD
Share
Piston for engine
Description Value
Piston Outside Diameter (mm)111.89
Ring MaterialStainless steel
Top Compression Ring Thickness (in)0.098
Second Compression Ring Thickness (in)0.078
Oil Ring Thickness (in)0.157
Piston Pin Outside Diameter (in)1.456
Piston Pin Length (in)3.331
Piston Pin MaterialSteel
Piston Head TypeNegative chamber
Piston MaterialAluminum alloy
Piston Outside Diameter (in)4.405
Meets or Exceeds Original Equipment Manufacture SpecificationsYes
Grade TypeStandar
Skirt TypeComplete
Piston Pmm Outside Diameter (mm)37
Top Compression Rmmg Thickness (mm)2.5
Second Compression Rmmg Thickness (mm)2
Cylinder Diameter (mm)112
Cylinder Diameter (in)4.409
Piston Pmm Length (mm)84.6
Oil Rmmg Thickness (mm)4




Also Fits

Year BRAND Model Submodel Engine (L)
2015 Hino 500 1524 7.7 L 7684 6 J08E-TE (EPA 04) U/K 24
2016 Hino 500 1524 7.7 L 7684 6 J08E-TE (EPA 04) U/K 24
2017 Hino 500 1524 7.7 L 7684 6 J08E-TE (EPA 04) U/K 24
2018 Hino 500 1524 7.7 L 7684 6 J08E-TE (EPA 04) U/K 24
2019 Hino 500 1524 7.7 L 7684 6 J08E-TE (EPA 04) U/K 24
2020 Hino 500 1524 7.7 L 7684 6 J08E-TE (EPA 04) SOHC 24
