Product Detail

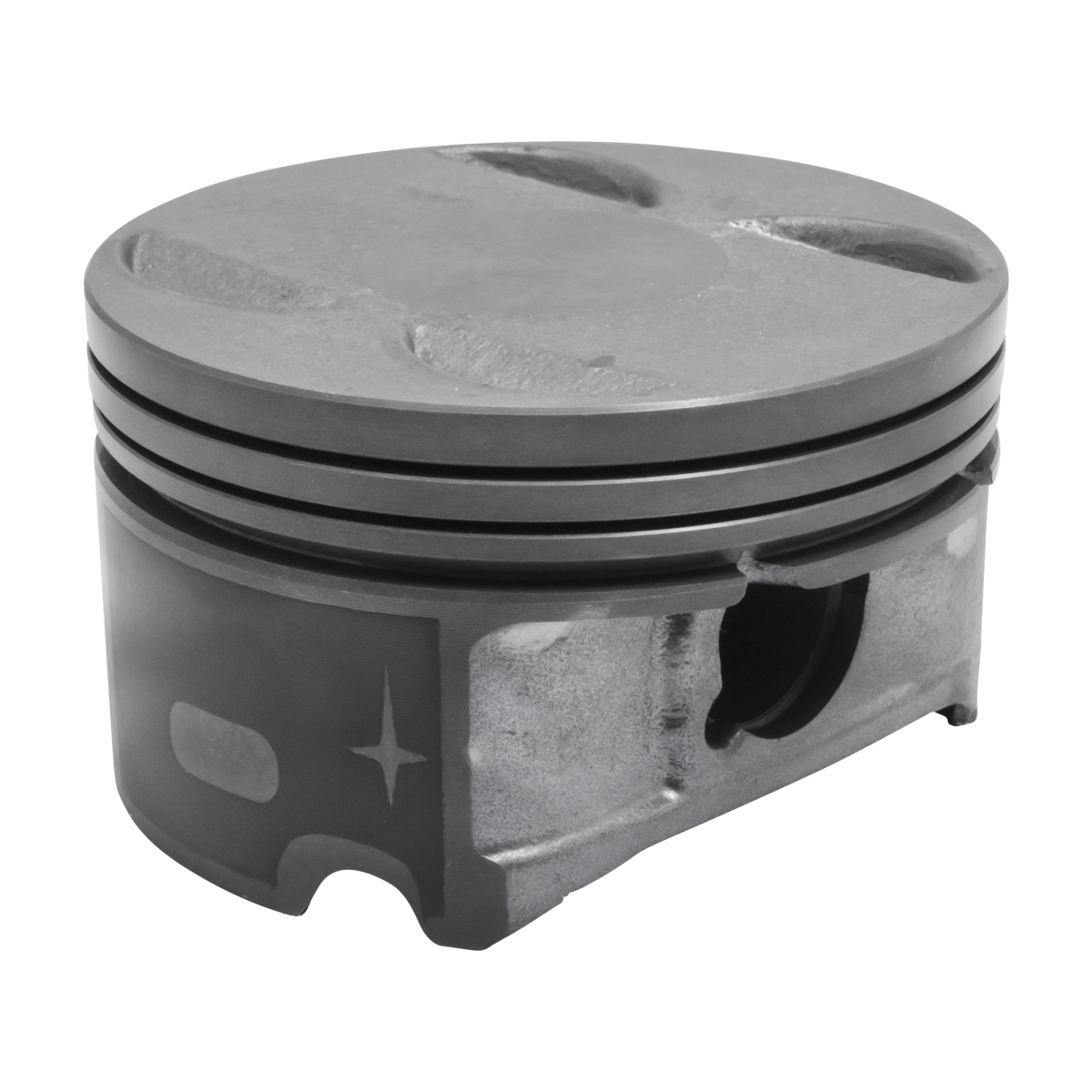

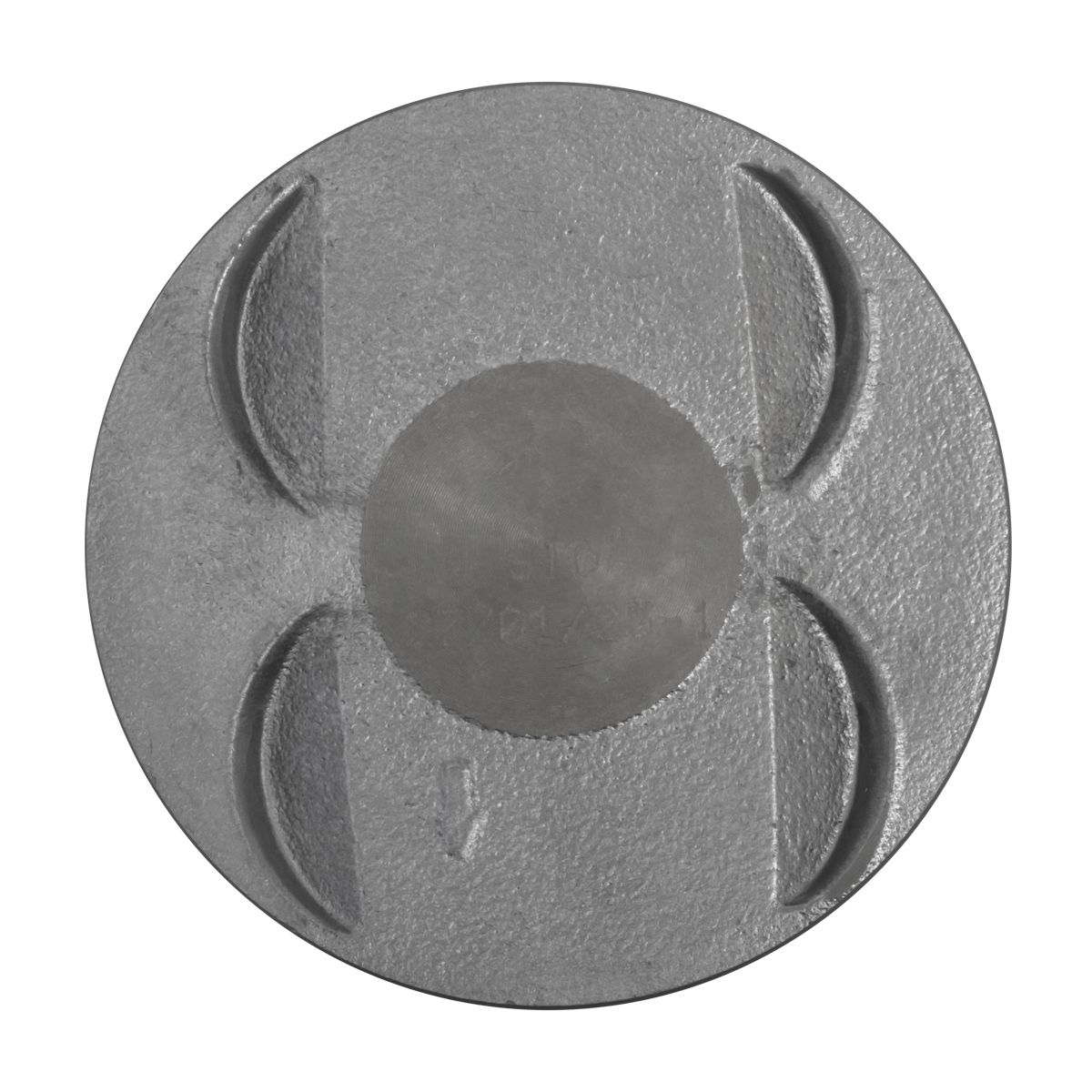

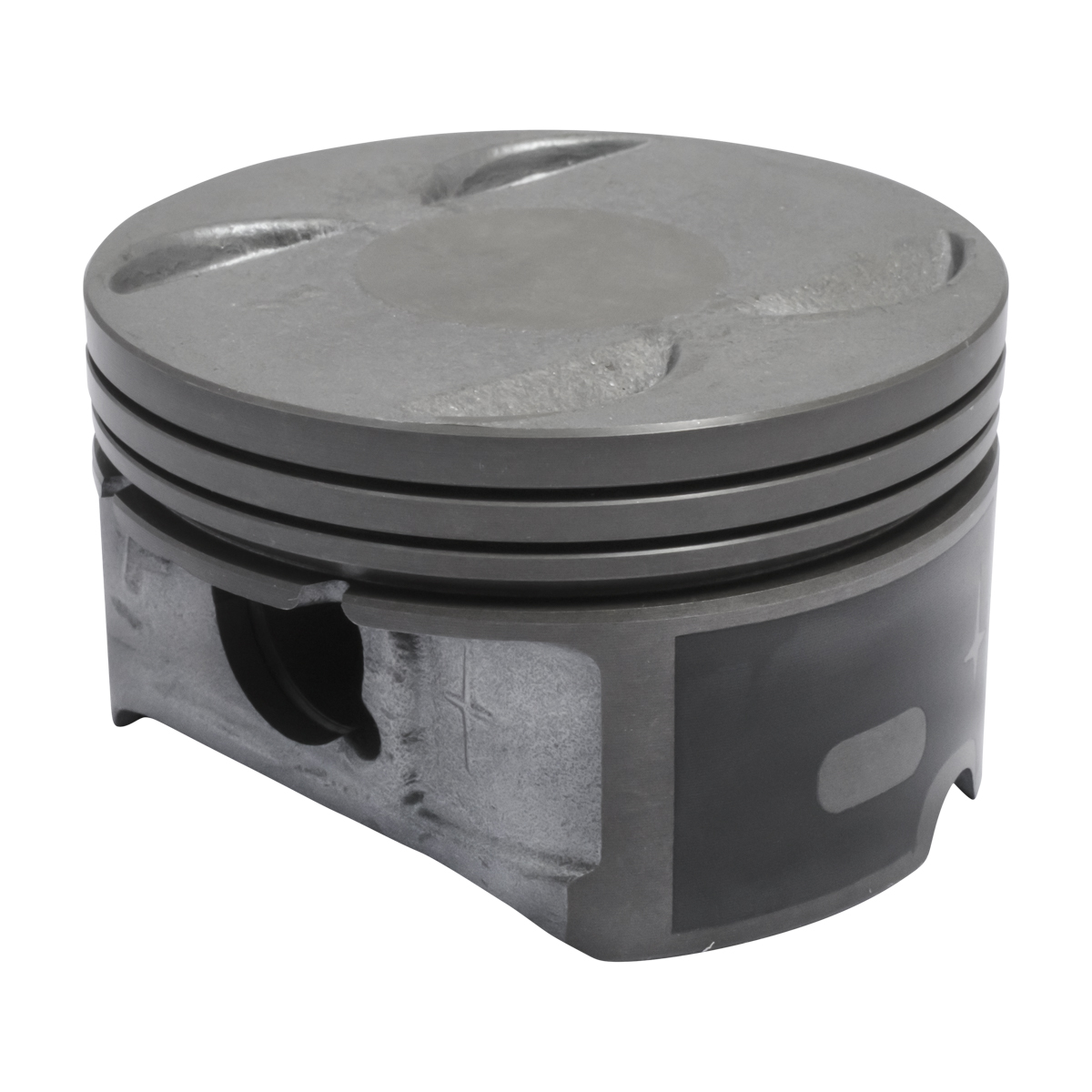

Piston Moresa brand

No. Parte: #1182 STD
Piston for engine with specifications and materials of E.O. quality
Honda V6 3.5L (3475cc) SOHC 24 Vál J35A6, J35A7, J35Z2, J35Z3, J35Z4, J35Z8, J35Y1, J35Y2, Accord 2008-17, Accord Crosstour 2010-15, Odyssey 2008-17, Pilot 2009-11 y 2015
SKU: #1182 STD
Share
Engine Piston
Description Value
Piston Outside Diameter (mm)88.969
Ring MaterialIron
Top Compression Ring Thickness (in)0.04
Second Compression Ring Thickness (in)0.047
Oil Ring Thickness (in)0.11
Piston Pin Outside Diameter (in)0.865
Piston Pin Length (in)2.094
Piston Pin MaterialSteel
Piston Pin Incorporated BearingsNo
OversizedNo
Piston Head TypeDish
Assembly Lubricant IncludedNo
Piston MaterialAluminium alloy
Piston Outside Diameter (in)3.502
Meets or Exceeds Original Equipment Manufacture SpecificationsYes
Grade TypeRegular
Skirt TypeFull
Piston Pmm Outside Diameter (mm)21.965
Top Compression Rmmg Thickness (mm)1.2
Second Compression Rmmg Thickness (mm)1.2
PositionN/A
Cylinder Diameter (mm)89
Cylinder Diameter (in)3.503
Piston Pmm Length (mm)53.2
Compression Height (mm)30
Compression Height (in)1.181
Bowl Depth or Crown Height (mm)-0.55
Bowl Depth or Crown Height (in)-0.022
Bowl Diameter (mm)0
Bowl Diameter (in)0
Piston Pin AssemblyFloating Pin
Oil Rmmg Thickness (mm)2.8
NoteStandard Size




Also Fits

Year BRAND Model Submodel Engine (L)
