Product Detail

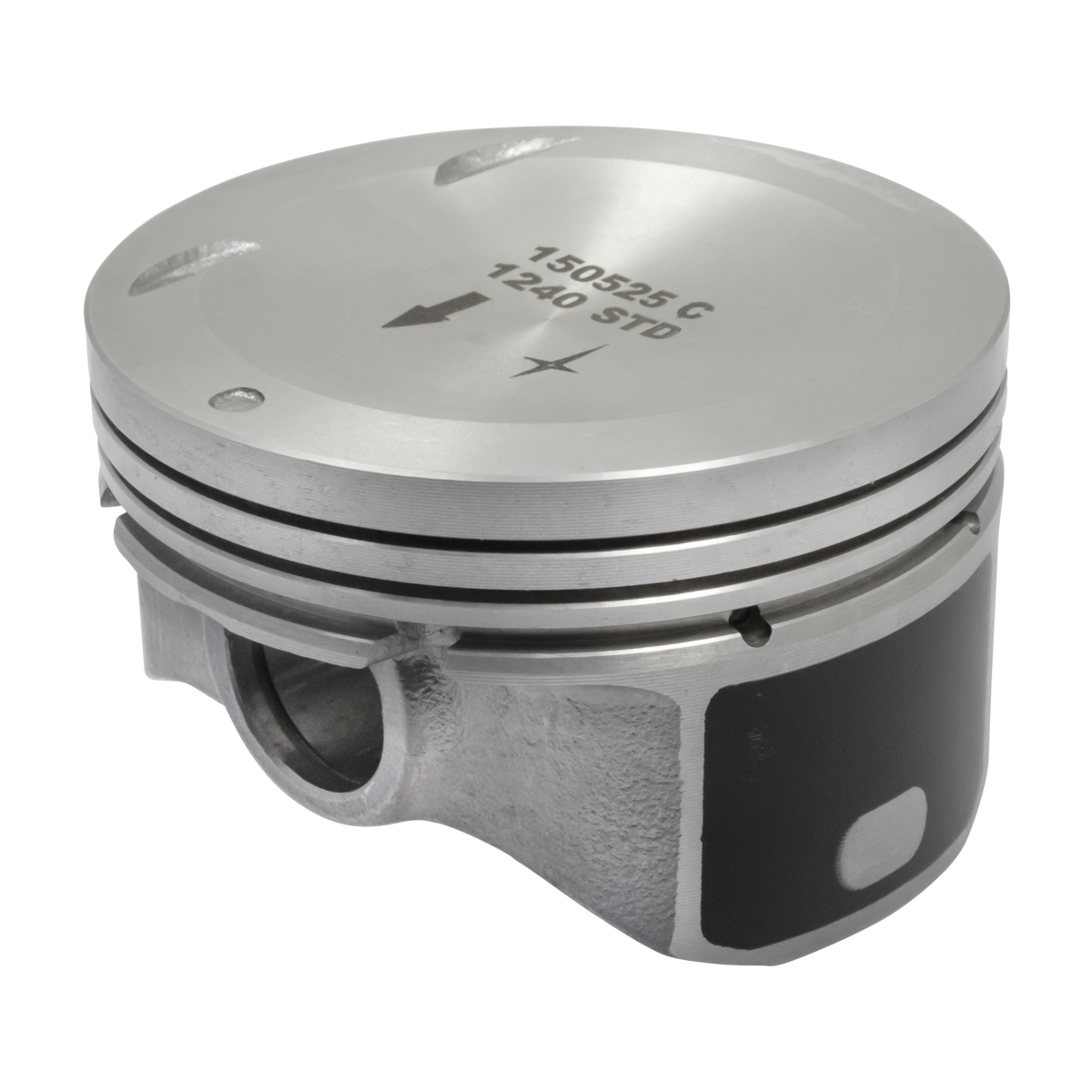

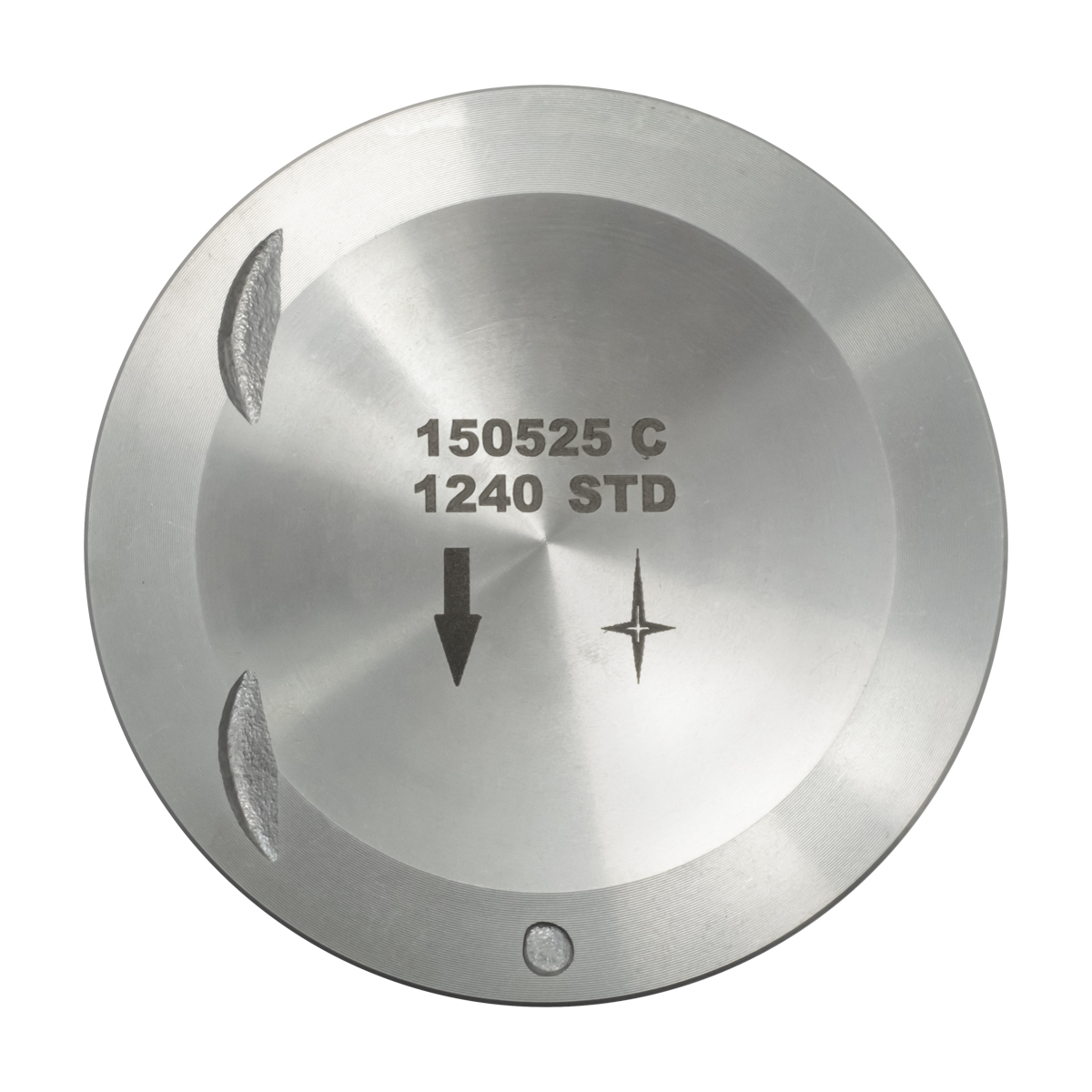

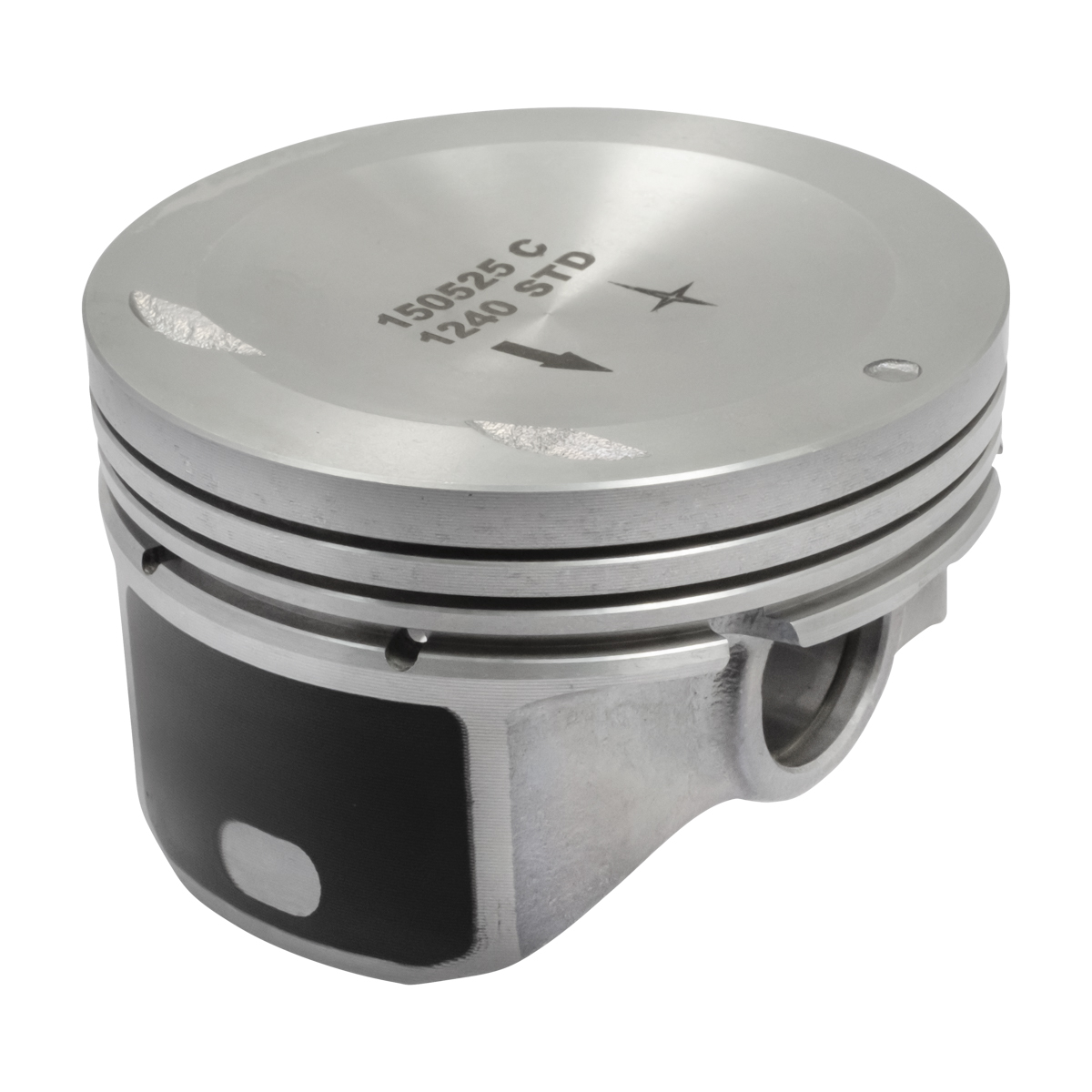

Pistón de motor

No. Parte: #1240 050
Pistón con especificaciones y materiales de calidad de E.O.
Suzuki L4 1.4L (1373cc) DOHC 16 Vál. VVT K14B 2012-17, Swift. CIAZ 2016, BALENO 2021-2022
SKU: #1240 050
Share
Pistón
Description Value
Piston Outside Diameter (mm)73.17
Ring MaterialHIERRO GRIS
Top Compression Ring Thickness (in)0.039
Second Compression Ring Thickness (in)0.047
Oil Ring Thickness (in)0.079
Piston Pin Outside Diameter (in)0.079
Piston Pin Length (in)1.831
Piston Pin MaterialACERO
Piston Pin Incorporated BearingsNO
OversizedSI
Piston Head TypeCAZUELA
Assembly Lubricant IncludedNO
Piston MaterialALEACION DE ALUMINIO
Piston Outside Diameter (in)2.88
Meets or Exceeds Original Equipment Manufacture SpecificationsSI
Grade TypeREGULAR
Skirt TypeCOMPLETA
Piston Pmm Outside Diameter (mm)18
Top Compression Rmmg Thickness (mm)1
Second Compression Rmmg Thickness (mm)1.2
Cylinder Diameter (mm)73.2
Cylinder Diameter (in)2.882
Piston Pmm Length (mm)46.5
Compression Height (mm)26
Compression Height (in)1,024
Bowl Depth or Crown Height (mm)+5.26
Bowl Depth or Crown Height (in)+0.207
Bowl Diameter (mm)54,60
Bowl Diameter (in)2,150
Third Compression Rmmg Thickness (mm)2
Piston Pin AssemblyFLOTANTE
Oil Rmmg Thickness (mm)2




Also Fits

Year BRAND Model Submodel Engine (L)
2016 Suzuki Ciaz GLS 1.4 L 1372 4 K14B DOHC 16
2016 Suzuki Ciaz GLX 1.4 L 1372 4 K14B DOHC 16
2017 Suzuki Swift Edicion Especial 1.4 L 1372 4 - DOHC 16
2017 Suzuki Swift GLS 1.4 L 1372 4 - DOHC 16
2017 Suzuki Swift GLX 1.4 L 1372 4 - DOHC 16
2021 Suzuki Baleno GLS 1.4 L 1372 4 K14B DOHC 16
2021 Suzuki Baleno GLX 1.4 L 1372 4 K14B DOHC 16
2022 Suzuki Baleno GLE 1.4 L 1372 4 K14B DOHC 16
2022 Suzuki Baleno GLS 1.4 L 1372 4 K14B DOHC 16
2022 Suzuki Baleno GLX 1.4 L 1372 4 K14B DOHC 16
